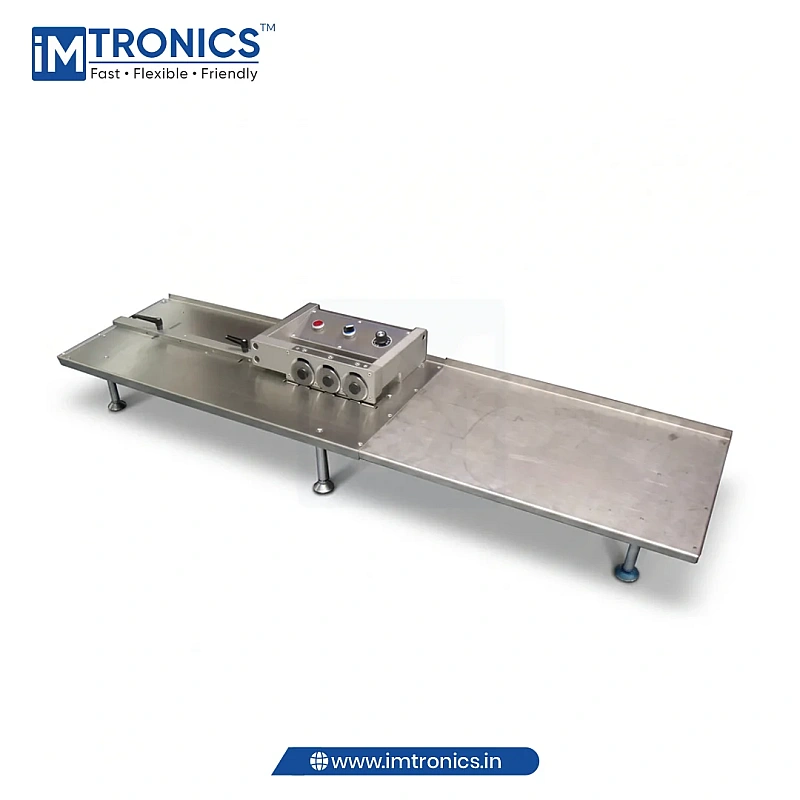

A 1200mm MCPCB cutting machine is an industrial machine that cuts and separates Metal Core PCBs (MCPCBs) with high precision and safety into individual boards. It is specially designed for long PCB panels, typically longer than 1200mm, and it is widely used in LED lighting and power electronics manufacturing.
The machine uses different cutting methods, such as multi-blade V-cut, straight blade cutting or CNC routing depending on the model. The PCB panel is then placed inside the machine and the cutting part cuts the boards at the specified cutting lines or grooves without causing any damage to the copper layer or the circuit.
Today's 1200mm MCPCB cutting machines incorporate adjustable blade mechanisms and high precision steel cutters to help to create smooth and clean edges. There are also some more sophisticated models that feature a conveyor system for the automatic feeding and collection of the material used, offering an additional boost in productivity and minimising the need for manual handling.
The primary application of these machines is in the LED panel industry, aluminium PCB industry, automotive electronics industry, and power supply industry. Because of the metal underlying the MCPCBs, proper cutting is extremely critical to ensure that no cracks, stress or damages occur to the thermal layers.
Overall, a 1200mm MCPCB cutting machine helps improve production efficiency, ensures accurate separation, and maintains the quality and reliability of metal core PCB boards used in modern electronic applications.
IMTronics Technology are trusted 1200 mm MCPCB Cutting Machine Suppliers in India with a variety of cutting solutions for various industrial requirements. The company has an extensive supply chain network, thus delivering its products on time to the small-scale industries and large manufacturing facilities.
Bulk supply facilities are useful in ensuring continuous production cycles. The company is specialised in providing machines that ensure high performance and consistency even in challenging industrial conditions.
IMTronics Technology are trusted 1200 mm MCPCB Cutting Machine Manufacturers in India, who are committed to offering high-performance, durable and precision-orientated cutting solutions to the electronics manufacturing industry. To make sure that each MCPCB cutting machine works without any problems, provides the same cutting accuracy and has a long service life in the harsh production conditions, the company uses the best engineering techniques and materials.
All MCPCA cutting machines of 1200 mm are subject to a rigorous quality control procedure that consists of checking designs, checking of components, checking of accuracy in assembly and testing of performance. The machines of IMTronics Technology are designed based on the international standards (ISO and CE) and, therefore, have the capacity to provide safe, efficient and accurate cutting operations. The primary objective of these machines is to put minimal stress on delicate parts and enhance the quality of boards and general production efficiency.
A 1200 mm MCPCB cutting machine is a highly significant production tool of electronic products, which is utilized in cutting large metal-core printed circuit boards into tiny parts. MCPCBs are commonly used in LEDs and power electronics due to their good heat-dissipating properties and the need to cut them carefully to avoid destruction.
These types of machines can process long panels up to 1200 mm and can be applied in high-volume manufacturing. They use advanced cutting devices such as circular cutters or linear blades to ensure that the separation has no burr. The cutting process is designed in such a way that it preserves the structural integrity of PCBs made of aluminium.
The parameters of the new generation MCPCB cutting machines can be adjusted so that the operator can control the cutting speed, positioning of the blade and cutting pressure depending on the thickness of the board and the material. These features, as low vibration, high-precision positioning and stable operation, make it possible to reduce micro-cracks and ensure a stable quality of cutting.
IMTronics Technology's 1200mm MCPCB cutting machines are popular in various fields:
Electronics Manufacturing
Checks proper cutting of MCPCBs in SMT lines.
LED Lighting Industry
Ideal to cut long LED aluminium boards using a precision cut.
Automotive Industry
Applied to automotive electronic boards to cut with high precision.
Power Electronics
Favours manufacture of heat-resistant circuit boards.
Telecommunications
Fosters precision in the production of communication devices.
Industrial Automation
Enhances productivity in manufacturing machines.
Consumer Electronics
Favours mass manufacture of electronic equipment.
The 1200mm MCPCB cutting machine is usually employed in:
|
Parameter |
Specification |
|
Product Type |
MCPCB Cutting Machine |
|
Maximum Cutting Length |
1200 mm |
|
PCB Type |
MCPCB (Aluminium PCB) |
|
Cutting Method |
Circular Cutter / Linear Blade |
|
PCB Thickness Range |
0.6 mm – 3.5 mm |
|
Cutting Speed |
Adjustable |
|
Operation Mode |
Manual / Semi-Automatic |
|
Blade Material |
High-Speed Steel / Tungsten Carbide |
|
Machine Structure |
Heavy-duty industrial frame |
|
Accuracy |
High-precision cutting |
|
Power Supply |
220V / 50Hz |
|
Control System |
Mechanical / Electronic |
|
Noise Level |
Low-noise operation |
|
Safety Features |
Safety Guards, Emergency Stop |
|
Maintenance |
Low maintenance design |
|
Compliance |
CE and ISO regulations |
A 1200 mm MCPCB cutting machine has a number of benefits:
IMTronics Technology is also known as one of the top dealers of 1200 mm MCPCB Cutting Machine Dealers in India, having a high distribution network in the large industrial areas. Dealers carry an inventory to deliver it at shorter lead times and faster.
They help customers to choose the appropriate machine depending on board size, thickness and requirements of production. They also offer installation services, operator training, and after-sales services to allow easy and efficient operation of the machines.
These are some of the reasons why we should be selected:
IMTronics Technology produces high-end 1200 mm MCPCB Cutting Machines that can assist electronic industries in attaining greater precision, efficiency and lower operation costs. We are experts in the products and have the expertise to offer you a standard cutting system or a tailor-made solution to your production requirements.
Contact us today and upgrade your manufacturing process with the high-performance MCPCB cutting machines that are intended to be efficient and durable and carve out precision cuts.
A 1200mm MCPCB Cutting Machine is a specialized PCB cutting machine designed to cut long-size Metal Core Printed Circuit Boards with accuracy and stability. It is commonly used in LED lighting, power electronics, and electronics manufacturing industries where aluminum-based MCPCB boards need clean and controlled cutting.
A 1200mm MCPCB Cutting Machine for LED PCB manufacturing is used because MCPCB boards are harder and more rigid than normal FR4 PCBs. Manual cutting can damage the board, create rough edges, or affect mounted components. This machine helps achieve smooth cutting, better edge finishing, and reduced board stress during production.
A 1200mm MCPCB Cutting Machine works by using a controlled cutting blade or cutting mechanism to separate MCPCB panels with precision. The machine holds the board firmly and cuts along the required line, helping maintain dimensional accuracy while reducing vibration, bending, and mechanical stress on the PCB.
Using a 1200mm MCPCB Cutting Machine in PCB assembly helps improve cutting accuracy, reduce manual labor, prevent board cracking, and maintain consistent production quality. It is especially useful for long MCPCB panels used in LED tube lights, strip lights, panel lights, street lights, and other LED applications.
While choosing a 1200mm MCPCB Cutting Machine, consider cutting length, MCPCB thickness compatibility, blade quality, cutting accuracy, machine stability, safety features, ease of operation, and production capacity. A reliable MCPCB cutting machine should provide smooth cutting, low-stress separation, and long-term performance for electronics manufacturing.
