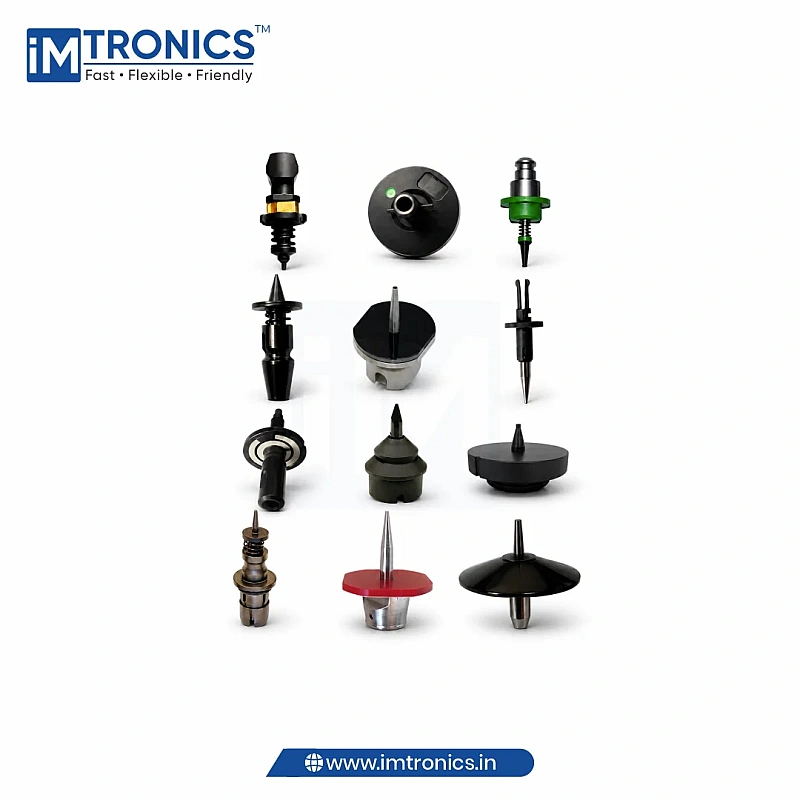

SMT nozzles are key elements in Surface Mount Technology (SMT) pick-and-place machines which are designed to pick and place electronic components with precision onto Printed Circuit Boards (PCBs). This is done by using vacuum suction technology to retrieve surface mount devices (SMDs) and align them accurately during PCB assembly. For electronics manufacturing, SMT nozzles are vital components, crucial for achieving speed, precision, and efficiency.
The modern SMT nozzles are precision, durable and accommodate the use of various sizes and machine models. They come in different shapes and materials for use with different parts in the electronic devices, from the smallest chips up to larger electronic components. Good SMT nozzles can reduce placement errors, increase production speed and prevent component damage when assembly.
The nozzle systems are made from hard material like Ceramic, Tungsten steel and Diamond Coated nozzle surface to prolong the lifespan and guarantee placement accuracy. Some SMT nozzles also have anti-static characteristics, which is beneficial for automated production of sensitive electronic components.
The correct SMT nozzle is crucial for optimum PCB assembly performance. Choosing the right nozzle requires considerations of component size, machine compatibility and production needs. Suction performance and the overall machine efficiency can be maintained by the regular cleaning and maintenance of SMT nozzles. SMT nozzles are employed in industries like consumer electronics, automotive electronics, telecommunication, medical devices and industrial automation manufacturing.
IMTronics Technology is a reputed SMT Nozzle Suppliers in India and has a broad product line of quality nozzles that can be used in different SMT applications. The company also makes sure that it has reliable products that help to improve the accuracy of placement, minimise machine wear and increase overall efficiency.
IMTronics Technology has a powerful supply chain network, which guarantees a supply chain to small and large manufacturing facilities on time. Bulk supply facilitates continuous production activities, and thus, the firm is a reliable manufacturing partner.
IMTronics Technology is a leading SMT Nozzle Manufacturers in India which focuses on offering high-performance, durable and precision-engineered nozzles to the electronics manufacturing industry. The advanced engineering methods and high-quality materials are used to design all the SMT nozzles so that they can fit components correctly, perform consistently and have a high life span.
It employs all SMT nozzles with high quality control standards, which extends to include dimensional inspection, material testing, airflow testing and durability checks. The IMTronics Technology SMT Nozzles are produced under global requirements, such as the ISO and CE requirements, which guarantee accuracy, dependability and increased production efficiency.
SMT nozzles are important elements of pick-and-place machines to manipulate and attach electronic parts to PCBs. They are developed to collect elements with the help of vacuum suctioning and install them in the most precise manner at elevated frequencies.
These nozzles are offered in a wide variety of sizes and shapes to accommodate a wide range of components, ranging in size and shape between microchips and bigger parts. Good quality SMT nozzles have high wear resistance and constant suction and can be used in a variety of machines. They are critical in the minimisation of errors in placement, increased speed and consistency in production.
IMTronics Technology SMT Nozzles are well applied in a variety of industries:
Examples of common uses of SMT nozzles are the following:
|
Parameter |
Specification |
|
Product Type |
SMT Nozzle |
|
Material |
Ceramic / Tungsten Carbide / Stainless Steel |
|
Nozzle Type |
Standard / Custom |
|
Size Range |
Multiple sizes for different components |
|
Compatibility |
SMT Pick-and-Place Machines |
|
Suction Type |
Vacuum-based |
|
Durability |
High wear resistance |
|
Precision |
High-accuracy placement |
|
Surface Finish |
Smooth, anti-static coating |
|
Maintenance |
Low maintenance |
|
Safety Features |
Anti-static, component-safe design |
|
Compliance |
ISO and CE standards |
Key benefits include the following:
IMTronics Technology is also one of the best SMT Nozzle Dealers in India, having a large distribution network. Dealers hold in stock ready stock to be shipped in haste, reducing the customer downtime.
They also give professional advice to assist in choosing the correct nozzle according to the type of component, compatibility with machine and production needs. Other services would be installation support, usage instructions and reliable after-sales services.
IMTronics Technology is unique in the following ways:
IMTronics Technology offers quality SMT Nozzles that enhance the accuracy of placement, lower operational costs and enhance the efficiency of the overall production process. Whatever the type of nozzles you need, whether they are regular nozzles or custom-made models, our crew can offer you quality products and professional assistance.
Get in touch with us and simplify your SMT line of production by adopting a nozzle solution that is best suited to suit your needs.
An SMT nozzle is a precision tool used in pick-and-place machines to pick up and place electronic components onto PCBs using vacuum suction. It ensures accurate component handling during high-speed assembly processes.
The right nozzle depends on component size, shape, and weight. Smaller nozzles are used for chip components, while larger or specialized nozzles are required for ICs, connectors, or odd-shaped parts to ensure proper grip and placement accuracy.
SMT nozzles are typically made from ceramic, tungsten steel, or stainless steel. Ceramic nozzles offer high wear resistance and precision, while metal nozzles provide durability for heavy-duty applications.
Regular cleaning and maintenance prevent clogging, wear, and vacuum loss. A well-maintained nozzle ensures consistent pickup performance, reduces placement errors, and improves overall production efficiency.
Worn or damaged nozzles can lead to component drops, misalignment, poor suction, and placement errors, which directly affect product quality and increase rejection rates.
