Solder Paste Printer plays a critical role in the SMT (Surface Mount Technology) manufacturing process and is used to print solder paste on printed circuit boards (PCBs). It ensures that solder paste is properly and evenly applied to the soldering pads on the PCB before the components are placed.
A stencil made of stainless steel is affixed to the PCB, and the process starts. The solder paste printer will then use the squeegee blade to fill the stencil with solder paste. The paste is forced through the openings of the stencil and is placed with accuracy in the correct areas of the PCB. This leads to a clean and accurate pattern for components to be placed.
Today's solder paste printers offer automatic alignment systems, pressure controls, stencil cleaning systems, and vision inspection. These features contribute to increased printing accuracy and minimize defects like bridging, under-paste and misalignment in the printing.
Solder Paste printers are popular in electronics industry such as smartphones, computers, automotive electronics, and medical devices. They enhance the speed of production, ensure consistency, and minimize manual errors in PCBs assembly.
By ensuring precise solder paste application, solder paste printers play a key role in creating strong solder joints and improving the overall quality and reliability of electronic products.
IMTronics Technology is a leading Solder Paste Printer Suppliers in India, offering a wide range of high-end print equipment to meet the ever-increasing requirements of the electronics industry. IMTronics Technology is known for offering advanced equipment which ensures accuracy, reliability and ruggedness of the processes. IMTronics Technology's efficient supply chain management means that the solder paste printers can be shipped promptly to different manufacturing locations to support small and large production volumes. IMTronics Technology has sufficient inventory and efficient logistics to offer short lead times, avoiding delays for the customer's production.
IMTronics Technology can also provide different supply options like standard and non-standard products according to customers' production needs. Equipment is handled, packed and shipped in a controlled manner to retain its efficacy, and to ensure safe arrival at the customer's siteThorough quality assurance by IMTronics Technology ensures that every printer is ready to perform and is able to withstand harsh production conditions. Apart from product availability, pre-sales suggestions and after-sales support are provided by Imtronics to select the right machine based on the customer's application, throughput and degree of automation. By putting customers first, IMTronics Technology is the leading supplier of quality solder paste printers.
IMTronics Technology is amongst the best and leading Solder Paste Printer Manufacturers in India, offering extremely accurate, precise and latest printing machinery for the electronics industry. The company invests in research, precision and durability in developing and producing solder paste printers that are suited for today's SMT (surface mount technology) manufacturing. By utilising quality components and innovative engineering principles with user-friendly control systems, Imtronics optimises the printing process for accuracy, repeatability and productivity.
The solder paste printers are manufactured according to strict quality control measures, such as procurement of components, construction of the mechanical frame and calibration and testing of the printer. The machines are manufactured to international standards such as ISO, RoHS and other safety and environmental standards. IMTronics Technology's printers ensure consistent solder paste printing, reduce solder paste defects and enhance the quality of the PCB assemblies.
The solder paste printer is an essential tool in surface mount technology (SMT) for applying solder paste to a printed circuit board (PCB). It deposits solder paste on a printed circuit board (PCB) using a stencil to transfer the paste onto the required pads where components are to be placed, using a squeegee. This is required for good reflow of the solder and to prevent issues such as bridging, no solder, or misalignment. An efficient solder paste printer can improve production speed, reduce wastage and ensure consistency throughout small and high-volume production.
IMTronics Technology serves various industries:
Electronics Manufacturing Industry
Facilitates accurate placement of solder paste for PCBs.
Automotive Sector
Facilitates efficient car electronics production.
Telecommunications Industry
Enhances telecommunications equipment.
Industrial Automation
Control panel and automation system manufacturing.
Medical Equipment Manufacturing
Provides precise printing of fragile electronics.
Aerospace and Defence
Provides high quality to critical assemblies.
LED and Lighting Industry
Allows accurate placement of solder in LED boards.
Consumer Electronics
Allows mass production of appliances and devices.
Solder paste printers are used in:
|
Parameter |
Specification (Typical Range) |
|
Machine Type |
Manual / Semi-Automatic / Fully Automatic |
|
Printing Method |
Stencil (Screen) Printing |
|
Application |
SMT PCB Solder Paste Deposition |
|
Max PCB Size |
300 × 250 mm to 510 × 460 mm |
|
Min PCB Size |
50 × 50 mm (approx.) |
|
PCB Thickness |
0.2 – 2.5 mm |
|
Stencil Frame Size |
370 × 470 mm to 736 × 736 mm |
|
Print Table Size |
~320 × 450 mm |
|
Printing Accuracy |
±0.02 mm |
|
Repeatability |
±0.05 mm |
|
Minimum Pitch Capability |
0.25 mm (fine pitch components) |
|
Squeegee Type |
Metal / Polyurethane Blade |
|
Squeegee Pressure |
5 – 12 kg adjustable |
|
Squeegee Speed |
10 – 150 mm/sec (adjustable) |
|
Alignment System |
Manual / Vision (CCD Camera in auto machines) |
|
Positioning Method |
Pin positioning / Fiducial alignment |
|
Air Supply |
4 – 6 kg/cm² (for pneumatic systems) |
|
Power Supply |
110V / 220V AC, 50–60 Hz |
|
Control System |
PLC / Microcontroller / Industrial PC |
|
Cycle Time |
10 – 20 sec per PCB (auto machines faster) |
|
Conveyor System |
Optional (SMEMA compatible in auto printers) |
|
Cleaning System |
Manual / Automatic stencil cleaning |
|
Paste Type Compatibility |
Type 3, Type 4, Type 5 solder paste |
|
Paste Viscosity Range |
600 – 1200 Pa·s |
|
Stencil Thickness Support |
0.08 – 0.15 mm |
|
Operating Environment |
Temp: 20–25°C, RH: 30–60% |
|
Machine Dimensions |
~1170 × 1040 × 1200 mm (varies) |
|
Weight |
200 – 350 kg (semi/auto machines) |
Solder paste printers have some advantages:
IMTronics Technology is also a premier Solder Paste Printer Dealers in India, with a strong presence in the country's industrial centres. This is spread out to reach customers across India with products and support. The dealers maintain a stock of various models of solder paste printers which can be delivered instantly, reducing lead times. This is particularly important to the high-speed manufacturing industry, where downtime must be eliminated. Imtronics' regional inventory management allows customers to maintain production.
Imtronics dealers have storage and handling guidelines to ensure performance. They follow all the steps in handling the equipment from storage to packaging to ensure it reaches the customer in the best possible condition.
To operate correctly:
IMTronics Technology is special because the following:
IMTronics Technology offers you cutting-edge solder paste printers for high-speed, precision and repeatability in SMT and PCB assembly processes. Let our experts guide you with technical support and products for both standard and tailor-made equipment.
Contact us today to improve your PCB assembly with quality and economical solder paste printing equipment that meets your manufacturing requirements.
A Solder Paste Printer is an essential SMT machine used to apply solder paste accurately onto PCB pads through a stencil. It plays a key role in the PCB assembly process because the quality of solder paste printing directly affects component placement, solder joint strength, and final product reliability. A properly working solder paste printer helps reduce defects and improves overall production quality.
A Solder Paste Printer machine works by aligning the PCB with a stencil and spreading solder paste over the stencil openings using a squeegee. The solder paste is deposited only on the required PCB pads, creating a base for accurate component mounting. This process helps ensure clean, uniform, and repeatable solder paste application in SMT production.
Using a Solder Paste Printer for SMT production helps improve printing accuracy, reduce solder paste wastage, maintain consistent paste thickness, and increase PCB assembly efficiency. It also reduces common defects such as bridging, insufficient solder, misalignment, and poor solder joints. For electronics manufacturing, it supports better quality control and faster production output.

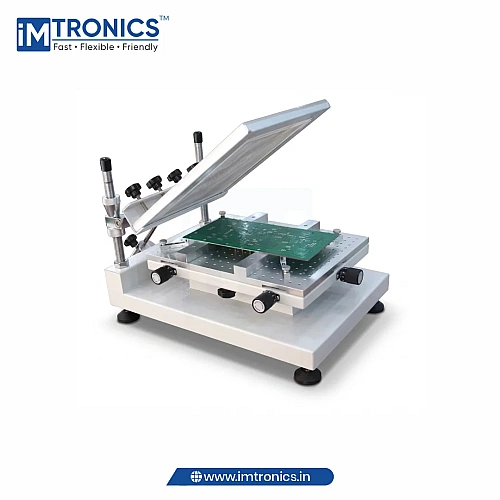

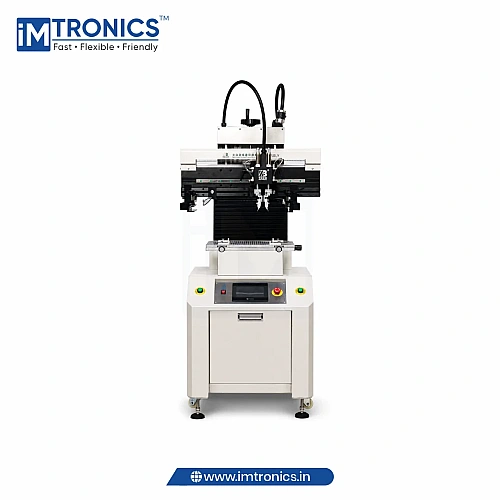

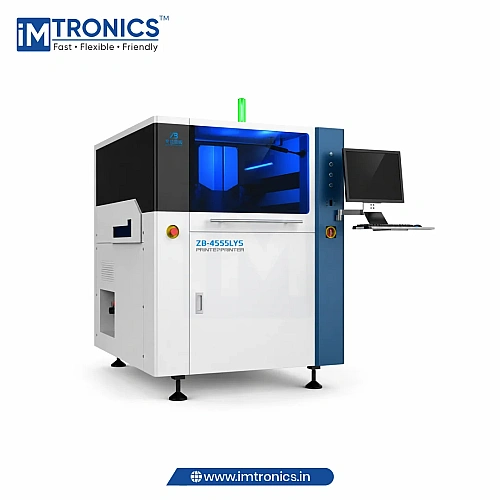

A manual solder paste printer is suitable for small-scale PCB assembly and prototype work. A semi-automatic solder paste printer offers better control, accuracy, and repeatability for medium production needs. An automatic Solder Paste Printer is designed for high-volume SMT manufacturing, offering advanced alignment, stable printing pressure, faster operation, and improved consistency.
To choose the right Solder Paste Printer, consider PCB size, production volume, printing accuracy, stencil compatibility, alignment system, squeegee pressure control, machine stability, and ease of operation. A reliable solder paste printing machine should deliver consistent results, reduce rework, and support smooth PCB assembly for long-term production use.
