| Parameter | Specification |
|---|---|
| Product Name | ESD Wrist Band Monitor |
| Monitoring Type | Continuous Monitoring |
| Channels | Single / Dual (optional) |
| Resistance Range | 750 kΩ – 10 MΩ (standard range) |
| Alarm Type | Audible & Visual (LED Indicator) |
| Power Supply | AC Adapter / 9V–12V DC |
| Accuracy | ±10% |
| Response Time | < 0.1 second |
| Mounting Type | Bench Mount / Wall Mount |
| Operating Temperature | 0°C to 50°C |
| Material | ABS Plastic Housing |
| Compliance | ANSI/ESD S20.20 / IEC 61340-5-1 |
| Application | Electronics, Cleanroom, Assembly Lines |

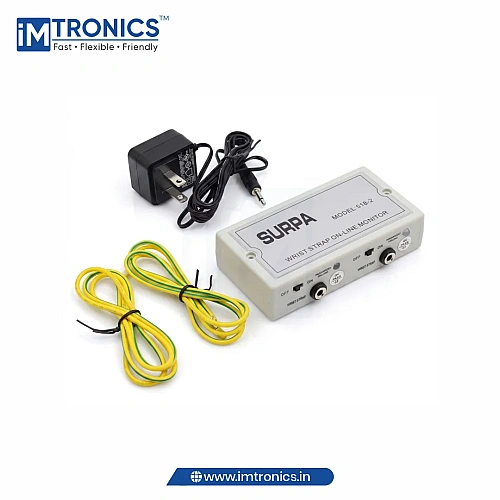

The ESD Wrist Band Monitor is a valid safety device that is continuously testing the performance of the grounding of the wrist straps in an area that is electrostatic discharge (ESD)-shielded. It ensures that operators of delicate electronic components do not lose ground at a given point in time and the damage caused by static electricity is minimised. The monitor can also give real-time warning messages by displaying visual LED indicators and alarms whenever the levels of resistance are out of the safe range to indicate bad contact or misuse.
It contains accuracy in circuitry and is consistent in performance to achieve good monitoring. It is compact and convenient to install in the electronic manufacturing companies, assembly lines, laboratories and clean rooms. The device comes with a single and dual wrist strap monitoring option and it is internationally ESD safety compliant.
