| Parameter | Specification |
|---|---|
| Printing Type | Fully Automatic |
| PCB Size (Max) | 400 mm × 340 mm (approx.) |
| PCB Thickness | 0.4 mm – 6 mm |
| Printing Accuracy | ±0.025 mm |
| Repeatability | ±0.01 mm |
| Cycle Time | 8 – 12 seconds |
| Alignment System | Vision Camera System |
| Squeegee Type | Motorized / Pneumatic |
| Squeegee Speed | 10 – 200 mm/sec (adjustable) |
| Air Supply | 4 – 6 bar |
| Power Supply | AC 220V / 50-60 Hz |
| Control System | PLC + Touch Screen |
| Machine Weight | 700 – 900 kg (approx.) |
| Applications | PCB Assembly, SMT Production Lines |

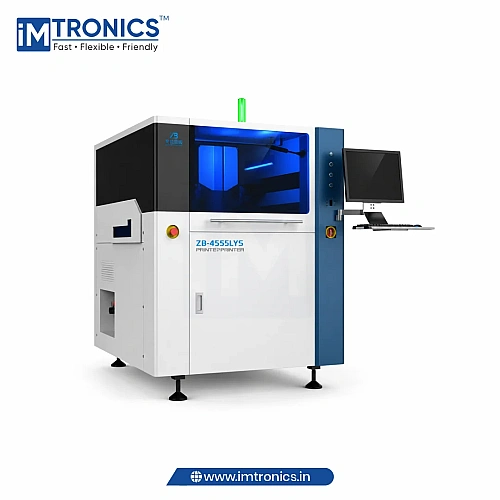

Automatic Printer is a high-precision tool, and it is applied to print the solder paste deposits in PCB assembly processes with high precision and speed. It has automated all processes such as PCB loading, stencil alignment, printing and unloading of the board and hence is more efficient and requires less human input. The printer has enhanced vision systems enabling it to give precise alignment and uniform quality of print even with finer-pitch components. The parameters, such as squeegee speed, pressure, and print cycles, are also readily adjusted by its programmable controls, and it can be utilised in an extremely wide range of production requirements.
The ease of use and high stability of the item when it is running at high speed make it very easy to use and reduce the time of training. Automatic Printer is a mandatory machine in the current electronic assembly lines because it is high-tech equipment that will assist in boosting production rate, reduce wastage, reduce failures, and offer satisfactory reliability and operation in a medium- to large-scale company.
