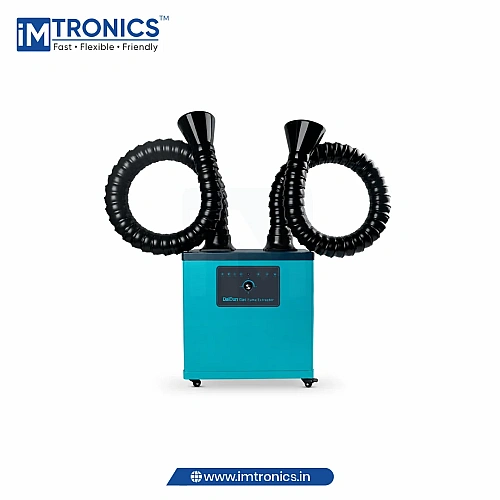

Dual arm Fume Extractor Bk-262
Dual arm Fume Extractor Bk-262 Manufacturers in IMTronics Technology

Dual arm Fume Extractor Bk-262

Parameter Details
Model BK-262
Air Inlet Ø75 mm × 2
Input Voltage AC 220V / 110V
Power Consumption 180W
Airflow Capacity 2 × 139 m³/h
Filtration Efficiency 0.3 µm / 99.97%
Noise Level < 55 dB
Filtration System Multi-layer (Pre + HEPA + Carbon)
Dimensions 425 × 400 × 250 mm
Weight ~16.2 kg
Control Type Stepless Speed Control
Mobility Caster Wheels

The Dual-Arm Fume Extractor Bk-262 is a high-performance two-arm fume extractor designed to effectively absorb harmful fumes produced during the soldering, laser work and electronic assembly processes. It has two flexible suction arms that offer greater coverage and effective smoke collection at various points within the same time. The unit has a high-powered brushless motor, which makes the unit stable, generates low noise, and has a long service life yet consumes less energy. It possesses a multi-layer filtration system comprising HEPA and activated carbon filters that are effective in filtering out particles as small as 0.3 microns; thus, its purification effectiveness is up to 99.97 per cent. The constant speed control flows smoothly and allows individuals to gauge airflow according to the workload requirements. The BK-262 features a sturdy metal frame and caster wheels to offer the unit stability and mobility, aiming at professional workshops and industrial settings where maintaining clean air quality and the safety of the operator is required.
