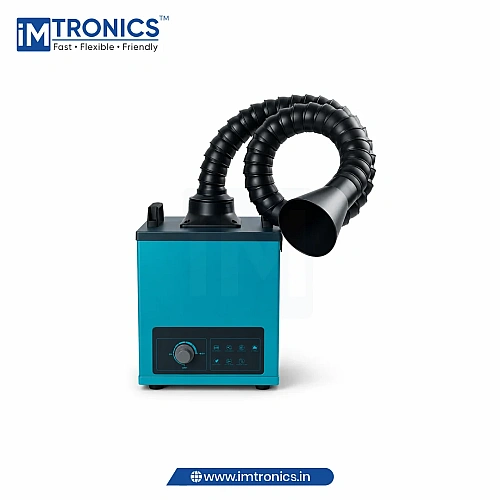

Single arm Fume Extractor BK-261
Single arm Fume Extractor BK-261 Manufacturers in IMTronics Technology

Single arm Fume Extractor BK-261

Parameter Specification
Model BK-261
Input Voltage 220V AC / 50Hz
Power Consumption 80–120W
Air Flow Capacity 180–260 m³/h
Filtration System Pre-HEPA + Activated Carbon Filter
Arm Length Approx. 1.2 – 1.5 meters
Noise Level ≤ 60 dB
Dimensions Approx. 420 × 245 × 450 mm
Weight 10 – 12 kg
Application Soldering, Laser Work, Electronics

The Single-Arm Fume Extractor BK-261 is high-efficiency air purification equipment to eradicate the harmful fumes, smoke, and dust produced during soldering, laser work and light industrial operations. It has a flexible single extraction arm that enables it to be placed precisely on the contaminated area, making sure that as much of the contaminant is captured as possible, resulting in full filtration. The unit has a multi-stage filtration system, which consists of a pre-filter, HEPA filter and activated carbon filter, which are effective in the removal of particulate matter and toxic gases. Its strong but cost-effective motor makes sure that it has a constant suction operation and low noise levels to provide a comfortable working environment.

It is small and lightweight and can be mounted on the workbenches, in the laboratories and in the production units. The BK-261 has been designed using hard materials that are easy to maintain and last longer, with easily replaceable filters and user-friendly controls that make it easy and convenient to operate.
