SCH-PC101-18

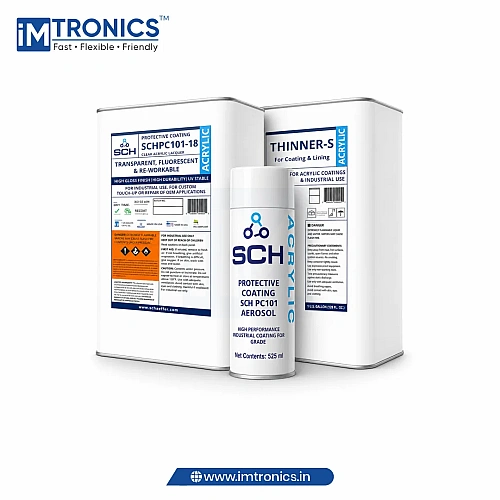

SCH-PC101-18 is a single-component conformal coating of acrylic, an energy-saving conformal coating, which is aimed at coating printed circuit boards (PCBs) and other electronic components to protect against harsh environments. This is an 18-grade formulation which is a balanced-viscosity formulation which is applicable in both spray and dip coating with a homogenous coverage. It is a permanent, easy-to-clean, rubbery protective coating that protects components against moisture, dust, chemicals, corrosion and fungi. The coating provides good dielectric insulation and thus increases the reliability and life of the fragile electronics. SCH-PC101-18 is a fast-drying material with excellent bonding properties to diverse substrates and, therefore, can be used in the automotive, aerospace, telecommunications and consumer electronics industries.

It is also highly transparent; therefore, it can be applied in LED applications without any effect on its light output. In sum, SCH-PC101-18 offers the long-term security and stability of the work of the electronic systems and enhanced work of the electronic systems even under the most adverse environmental factors. Technical Table Parameter Details Product Type Acrylic Conformal Coating Grade 18 (Medium Viscosity) Application Method Spray, Dip, Brush Appearance Clear, Transparent Film Drying Time (Touch Dry) 10–15 minutes Full Cure Time 24 hours (ambient conditions) Dielectric Strength ~40–60 kV/mm Operating Temperature Range -65°C to +125°C Moisture Resistance Excellent Chemical Resistance Good UV Resistance Good Shelf Life 12–24 months (sealed condition) Compliance IPC-CC-830, MIL-I-46058C (typical standards)
