| Parameter | Specification |
|---|---|
| Number of Nozzles | 6 Nozzles |
| Placement Speed | Up to 18,000 – 22,000 CPH (Components/Hour) |
| Placement Accuracy | ±0.02 mm |
| Component Range | 0201 to Large ICs |
| Feeder Capacity | 60–100 Feeders (Optional) |
| Vision System | High-resolution CCD Camera |
| PCB Size Range | Min: 50 × 50 mm / Max: 450 × 350 mm |
| Positioning System | Servo Motor Driven |
| Conveyor Type | Inline SMEMA Compatible |
| Programming | Offline & Online Programming Supported |
| Power Supply | AC 220V / 50–60 Hz |
| Air Supply | 0.5–0.7 MPa |
| Machine Weight | Approx. 1200–1500 kg |
| Dimensions | Approx. 1500 × 1200 × 1500 mm |

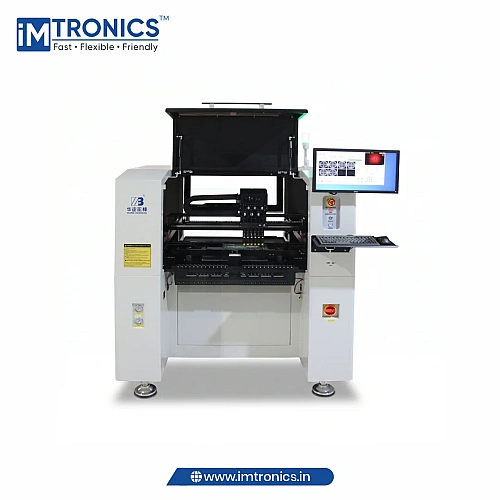

The SMT Automatic 6-Nozzle Online Pick-and-Place Machine is a high-speed, fully automated pick-and-place machine that is used in modern PCB assembly lines. It is designed with high accuracy and efficiency, with six high-performance placement heads, which allow parallel handling of components, thus dramatically boosting production throughput. The inline (online) design is easy to integrate with other SMT tools like printers and reflow ovens, which makes it the best in continuous mass production. Its intelligent feeder may take the volume of different parts, including microchips and other bigger ICs. The machine is very reliable, has minimum downtimes and consistent performance with user-friendly software, and is programmable and stable in build. It is most applicable in electronics manufacturing industries where speed, accuracy and scalability are needed.
