| Parameter | Specification |
|---|---|
| Model | SMT Desktop Pick & Place Machine |
| Number of Nozzles | 2 Nozzles |
| Feeder Capacity | 27 Feeders |
| Placement Speed | Up to 3000–5000 CPH (Components per Hour) |
| Placement Accuracy | ±0.02 mm |
| Vision System | High-resolution CCD Camera |
| PCB Size (Max) | 300 mm × 400 mm (approx.) |
| PCB Thickness | 0.6 mm – 2.0 mm |
| Component Range | 0402 to larger ICs |
| Feeder Type | Pneumatic / Electric Feeders |
| Programming | Manual / CAD Import |
| Control System | PC-based Control |
| Power Supply | AC 220V, 50/60 Hz |
| Air Supply | 0.4 – 0.6 MPa |
| Operating System | Windows-based Software |
| Machine Dimension | Approx. 900 × 800 × 600 mm |
| Weight | Approx. 80 – 120 kg |

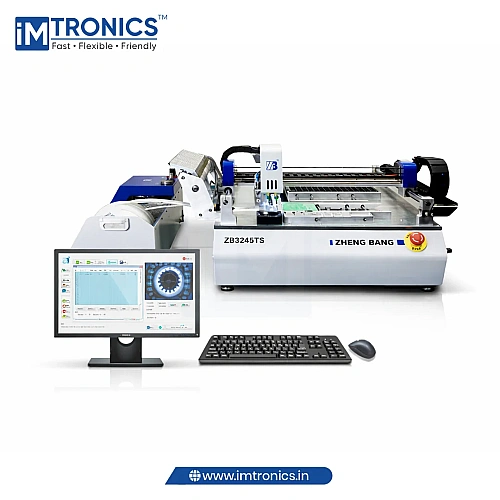

The SMT Desktop 2 Nozzle Pick and Place (27 feeders with vision) is a small and highly accurate machine which is effective in the small- to medium-size production environment in terms of PCB assembly. The machine has two nozzles that enable it to place components at high speed and boost productivity and cycle time. It has an advanced vision system enabling it to recognise components accurately and align and place them to reduce error and enhance the overall quality. It has a maximum of 27 feeders that can be used, which enhances its versatility to accommodate different components and can be used in the numerous applications in electronics manufacturing.
Its user-friendly interface enables easy programming and operation even for complex PCB designs. It has a stable construction and a stable motion system, which guarantees stable performance and service life. The machine is a perfect fit in prototyping, R&D laboratories and batch production, providing precision, speed, and efficiency in a small desktop format.
