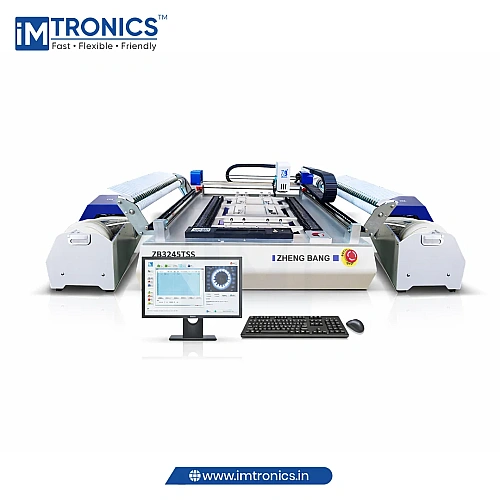

SMT Desktop 2 Nozzle Pick and Place Machine (54 feeders with Vision)

Parameter	Specification
Model	SMT Desktop Pick & Place Machine
Number of Nozzles	2 Nozzles
Feeder Capacity	54 Feeders
Placement Speed	Up to 4000–7000 CPH (Components per Hour)
Placement Accuracy	±0.02 mm
Vision System	High-resolution CCD Camera
PCB Size (Max)	300 mm × 400 mm (approx.)
PCB Thickness	0.6 mm – 2.0 mm
Component Range	0402 to larger ICs
Feeder Type	Pneumatic / Electric Feeders
Programming	Manual / CAD Import
Control System	PC-based Control
Power Supply	AC 220V, 50/60 Hz
Air Supply	0.4 – 0.6 MPa
Operating System	Windows-based Software
Machine Dimension	Approx. 1000 × 900 × 650 mm
Weight	Approx. 100 – 140 kg

SMT Desktop 2 Nozzle Pick and Place Machine (54 Feeders with Vision) This is a high-efficiency and flexible machine with the ability to produce PCBs with high precision and has been installed in small- to medium-scale production. It has two nozzles that enable components to be handled simultaneously, which is quite advantageous to the rate at which it can place components and its overall productivity. A high-level vision system ensures that all the components are correctly recognised, positioned and aligned, reducing errors and enhancing quality production.

The machine is more flexible to a large variety of parts and has more feeders (54) which are capable of supporting more components; therefore, it is more capable of supporting complex and high-mix PCBs. Its compact desktop size enables it to be used where space is limited, in such facilities as R&D laboratories, prototyping zones and batch production lines. Its user-friendly interface enables the use and programming of even complicated assemblies.
