| Parameter | Specification |
|---|---|
| Model | SMT Desktop Pick & Place Machine |
| Number of Nozzles | 4 Nozzles |
| Placement Speed | Up to 6000–10000 CPH (Components per Hour) |
| Placement Accuracy | ±0.02 mm |
| Vision System | High-resolution CCD Camera |
| PCB Size (Max) | 300 mm × 400 mm (approx.) |
| PCB Thickness | 0.6 mm – 2.0 mm |
| Component Range | 0402 to larger ICs |
| Feeder Capacity | 50–80 Feeders (configurable) |
| Feeder Type | Pneumatic / Electric Feeders |
| Programming | Manual / CAD Import |
| Control System | PC-based Control |
| Power Supply | AC 220V, 50/60 Hz |
| Air Supply | 0.4 – 0.6 MPa |
| Operating System | Windows-based Software |
| Machine Dimension | Approx. 1100 × 950 × 700 mm |
| Weight | Approx. 120 – 180 kg |

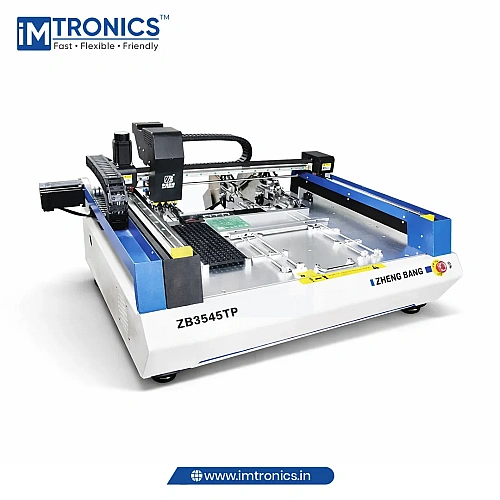

The SMT Desktop 4 Nozzle Pick and Place Machine is a powerful and efficient system that is capable of assembling PCBs more accurately and within a shorter period. It has four nozzles, which allow placing the components simultaneously, which increases the speed of production many times and minimises the cycle time. The vision system helps in ensuring that the components are properly recognised, aligned and positioned, reducing the number of errors and causing an improvement in the overall quality. The machine is highly versatile with a wide variety of components, including small chip components to larger ICs, and provides a high level of flexibility to a variety of PCB designs. The machine is made of a strong frame and sure-motion system to ensure consistent operation, excellent accuracy, and long life; hence, it can be a good choice to be used in the modern electronics manufacturing environment.
