A perfectly set up reflow oven can still produce weak solder joints. Well, it's basic. The oven setting indicates the oven's command but does not represent the actual temperature of the PCB. That gap is significant in SMT manufacturing, impacting the reliability and quality of the boards and solder, as well as batch-to-batch consistency. Cold joints are caused by insufficient heating. Excessive stresses of components and laminates. You can only know where you're at by measuring real temperature on the board. Thermal profiler accessories are to the rescue. They assist you to get correct data, set sensors properly and believe the profile you see.
What Are Thermal Profiler Accessories?
Thermal profiler accessories are the accessories which allow a profiling system to measure the temperature of a PCB as it passes through a reflow oven. These include sensors, mounting materials and other components, which help to maintain consistent and repeatable measurements.
Data logger is a profiler device. Gathers and records readings. The accessories are used to link that device to the board and to render these readings meaningful. Even a good logger will not provide reliable data without them. They are combined together to complete the thermal profiling equipment which displays what your solder joints actually experience during reflow.
Essential Thermal Profiler Accessories Used in SMT Manufacturing
There are many items involved in temperature measurement, logging and analysis during assembly. These are the main SMT thermal profiling accessories and equipment used for accurate PCB temperature profiling:
- K Type thermocouples
- Aluminium tape
- Slim KIC 2000 thermal profiler device.
K Type Thermocouples for Temperature Measurement
The sensing element of the setup is K type thermocouples. One of each is fixed at a selected location on the board and records the temperatures that occur as the PCB passes over the oven. The location of the sensor is of great importance. Put it on a large part and you may get one reading, stick it next to a small passive and it might be another, and stick it near the edge of a board and it may be yet another. The differences help direct the process validation. They indicate if all areas are being heated to the desired temperature while not overheating, the goal of PCB temperature measurement.
Aluminium Tape for Secure Sensor Placement
During a run, if a thermocouple changes, it will give an incorrect reading. The aluminium tape will help to firmly press the sensor tip on the spot so that the contact is kept constant throughout the measurement. The tape must be able to withstand high reflow temperatures without peeling, melting or leaving residue. A stable attachment also facilitates repeat runs to compare. This is a small accessory, but one of the most impactful thermal profiling accessories on data quality.
Slim KIC 2000 Thermal Profiler Device

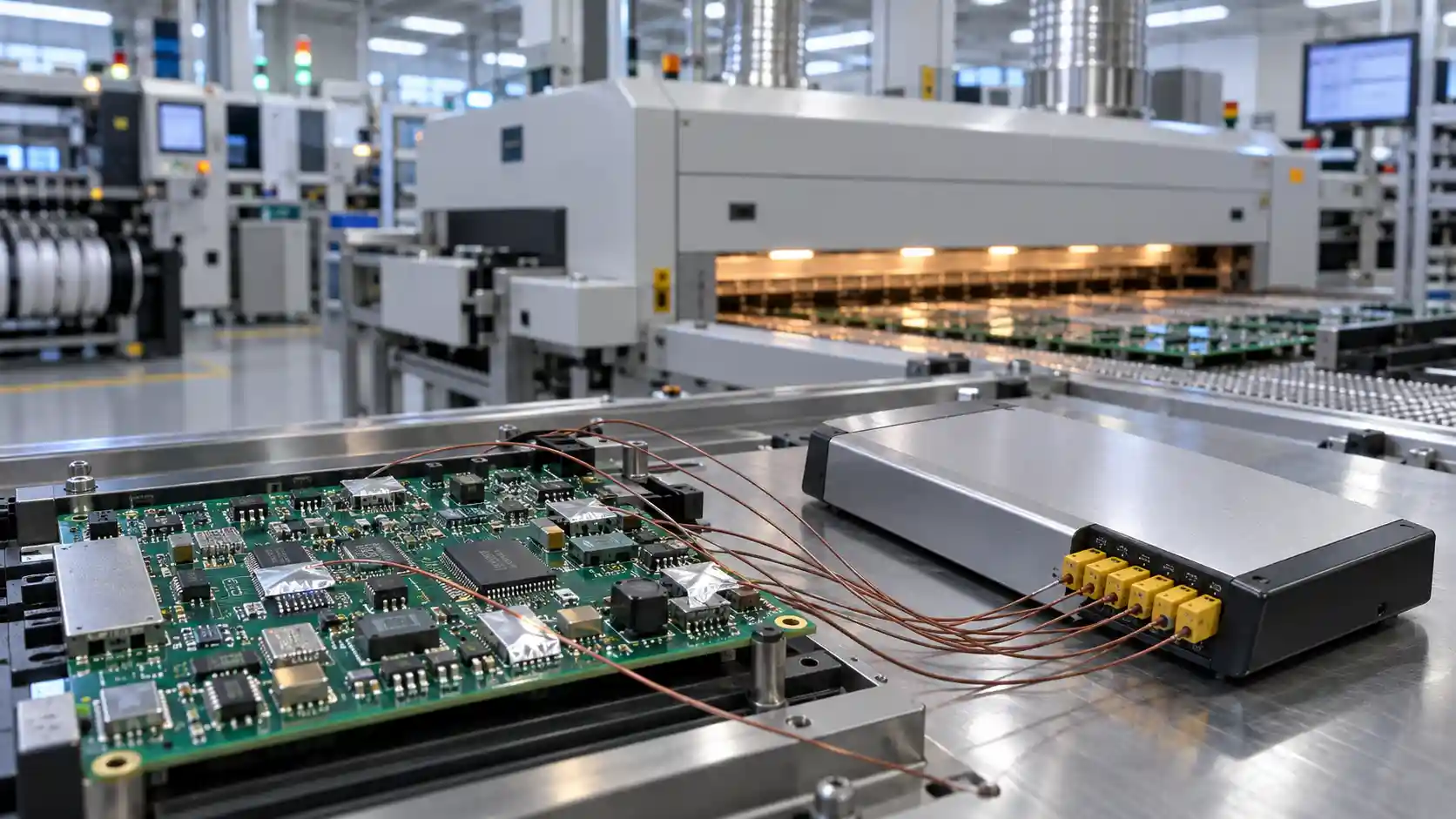

The Slim KIC 2000 Thermal Profiler collects the temperature data from the thermocouples. It goes with the board through the oven and records readings at various measurement channels, then allowing the engineers to analyse the results after the oven has fired. Multiple channels allow you to track various locations on the board in the same run and see the uniformity of heat distribution. That provides actual numbers to evaluate reflow soldering conditions. The Slim KIC 2000 Thermal Profiler Device is compatible with the appropriate thermocouples and accessories for attachments; check if compatible before placing an order.
Why Are Thermal Profiler Accessories Important for SMT Manufacturing?
Temperature information is directly related to the production outcome. If you understand what the board is going through, you can adapt the process, rather than winging the ride. This is how it works.
Improve Reflow Soldering Accuracy
There are stages that make up a reflow soldering temperature profile and each of these should get checked. They can be used to compare with solder paste and component specifications in the SMT reflow soldering process by profiling.
- Preheat gradually to heat the board up without causing high temperature shock.
- Even the temperature of components of varying sizes.
- The peak temperature needs to be high enough for a joint to be formed, but not so high. that it exceeds the limits of the components.
- Allow solder to wet - time above liquidus.
- Cooling has an effect on joint structure and strength.
Reduce PCB Assembly Defects and Rework
Profiling can tell about thermal conditions associated with soldering issues. Some examples are uneven heating, components exposed to too much heat, joints that did not fully reflow. Identifying these early can enhance PCB assembly quality control and minimize rework. It does not solve all defects, as other factors such as paste printing and placement accuracy and component quality also matter. However, it resolves one of the big unknowns and aids in the rapid tracking of SMT soldering defects.
Maintain Consistent Production Quality
Your customers will notice consistency. Repeatable profiling allows for checking oven set up after maintenance, product/recipe changeovers. Regular testing can also detect drift in advance of becoming a quality issue. This simplifies the SMT production quality monitoring from one shift to the next and within batches. Your team will also have a record to review and compare from time to time with routine thermal profile monitoring.
How to Choose the Right Thermal Profiler Accessories
The right set will prevent bad data and wasted runs. Before purchasing thermal profiler accessories for your line, look at these features:
- Ability to work with your profiler model and connectors.
- The type of thermocouple used that matches the device, e.g. K type thermocouples.
- Peak reflow temperature covered by the temperature range.
- Calculate the heat resistance of wires and insulation and tape.
- A reliable and repeatable method of attaching sensors.
- List the calibration requirements and documentation.
- Thermocouples, like other heat-resistant components, will wear out with use over time, and replacement availability is a factor.
Thermal profiling equipment that is good is a system. The failure of one link will ruin the entire reading.
Why Choose IMTronics for Thermal Profiler Accessories?
IMTronics is a B2B supplier of thermal profiling equipment and accessories for SMT lines. When a buyer contacts the team, here are what he or she can expect:
- A targeted product line with the Slim KIC 2000 Thermal Profiler for collecting reflow temperature data.
- Accessories including K Type thermocouples and aluminium tape, allowing you to create a full profiling setup.
- Specifically, IMTronics provides clear direction beforehand on specifications and compatibility to prevent buying incompatible items.
- An easy enquiry system in which you can bring your quantity, requirements and delivery needs to the team.
If you have been looking for thermal profiler accessories suppliers in India and are looking for a reliable source to start your enquiry, then the above mentioned is a good place to start.
Improve SMT Process Control with the Right Accessories
The first step to accurate profiling is to measure accurately. Thermal Profiler accessories are compatible and maintain a stable environment for sensors, consistent readings and data-driven decisions, ensuring steady outcomes for SMT manufacturing . Check the existing equipment, record the items that need changing and then associate them with your profiler.
|
All set to install your line? Visit the IMTronics Thermal Profiler Accessories collection today and make your inquiry. |
Frequently Asked Questions
The actual temperature to which a PCB is exposed in a reflow oven. Readings are taken by sensors at certain locations. The engineer makes a comparison of those readings to the solder paste and component specifications.
They span the range of temperatures which are typically used during reflow soldering. They are also very compatible with profiling devices. This will make them a convenient way to keep track of temperature at different locations on a PCB.
It secures the thermocouple tip in the board during the oven run. A secure attachment ensures that a script is read in the same way. It must also resist reflow temperature and not loosen.
No one-size fits all schedules for each line. Many teams profile when setting up a new product, after oven maintenance and periodically. The frequency should be based on your process requirements and quality standards.
No. Profiling is intended to help determine thermal deficiencies, but other problems may also be due to paste printing, placement, and/or components. It is one important aspect of process control.
It stores temperature information of the thermocouples that are attached with the board during the board's traverse through the oven. Monitor multiple board locations simultaneously with multiple channels. Engineers then study the data to determine the reflow conditions.
