Modern electronic devices are equipped with sophisticated and highly sensitive components such as ICs, microprocessors, sensors, semiconductors, PCBs, and many others. These components, in addition to their designed precision on electrical performance, are very sensitive to ESD.
ESD is an event where an accumulated static electricity suddenly passes from one surface/object to another, which can even be too small to be noticed, but it is capable of destroying ESD sensitive components, causing hidden damage, and degrading reliability of the electronic device.
Therefore, ESD protection is being seriously dealt with from manufacturing process, assembly process, testing, repair, storing and handling steps with the application of proper ESD safety products, materials, grounding methods and workstation.
What is ESD?
ESD stands for electrostatic discharge and it means a sudden transfer of an electrical charge from one place to another, between two surfaces or bodies which are at an electrical potential difference. The charge may build up from walking across a carpet, handling plastic sheeting, or simply moving package materials.
If a charged person touches a component in an electronic device, or vice versa, the charge stored on that person or on the object will be instantaneously discharged to the electronic device through that touch point and damage ESD sensitive component, which can be immediate failure or very small damage that will cause unexpected failure and will be apparent only when that device is in use.
Always choose reliable ESD products suppliers and dealers in India who have industry experience.
Historic Fact: “The rapid development of semiconductor technology increased the importance of electrostatic control because modern electronic components became progressively smaller and more sensitive to electrical overstress.”
Why is ESD Protection Important to Electronic Devices?
The core benefits of having good ESD protection in electronics lie in sensitive components at all stages of its life cycle starting from manufacturing/production step and throughout handling process. When appropriately planned protection will result in less unexpected failure, more reliable products and minimum component loss and reprocessing cost.
ESD protection is most important on:
- PCB assembly
- Testing & repair
- Storage & transit
- Equipment service
- Component packaging
- Component inspection
- Semiconductor handling
- Electronic device manufacturing
Right ESD safety equipment leads to the right direction of a smooth working process and for that IMTronics is the right choice.
Fun Fact: “An ESD event can occur without you feeling a spark, yet the discharge may still be powerful enough to damage delicate electronic components. That is why ESD protection is essential during electronics handling.”
How Does ESD Protection Prevent Electronic Component Failure?
ESD protection safeguards electronic devices from destruction by managing electrostatic discharge and dissipating stray charges in a safe manner prior to contacting the device. Static discharge can be responsible for the following damages:
Avoids Electrical Overstress
ESD protection allows for managing electro-static charge by minimizing electro-static discharge through sensitive components to safeguard inner semiconductor systems from stress.
Reduces Thermal Damage
Static charge discharge within components are minimized to avoid overheating on sensitive areas of delicate components
Keeps Internal Conductive Paths Secure
Through properly grounding and ESD safe equipment, conductive materials within the component avoid contact of a discharge, minimizing inner connection damage.
Keeps Latent Damage at Bay
An ESD controlled environment can help in minimizing hidden damage that causes immediate device failure. Using ESD safe equipment includes workstations, mats, wrist straps, tools, packaging etc. For sensitive components to remain in a safe and manageable state.
Encourages Long-Term Component Reliability
Electro-static charge management, throughout assembly, testing, storage and handling can allow for fewer electro-static discharge related component failures to encourage reliable device life
IMTronics is the leading ESD products manufacturers in India who have years of experience.
About IMTronics
IMTronics Technology is an authorized manufacturer, exporter, distributor, dealer and supplier of world best class quality durable SMT machines, SMT related tools and components to streamline electronics manufacturing. Established with the objective to make life simple to manufacturers, the IMTronics Technology provides Electronics Manufacturing Solutions including world’s best in class SMT Machines and PCB Assembly Solutions. It supports manufacturers to achieve efficient output, with high quality standards and operational productivity under expert guidance of Anoop Kumar Mishra & Deepak Kumar Jha, it is able to fulfil all the technical and manufacturing requirements of customers at competitive rates and can assist them reduce down-time. IMTronics Technology has also got the honor to be an ISO 9001:2015 Certified Company.
Applications of ESD Protection
Some of the applications are:
- PCB assembly
- R&D laboratory
- Medical electronics
- Telecommunications
- Electronic repair shop
- Consumer electronics
- Aerospace electronics
- Automotive electronics
- Electronics manufacturing
- Semiconductor manufacturing
Looking for quality ESD control systems then IMTronics is your right answer.
|
Here is another blog you might be interested in. |
Technical Specification
The following table talks about the technical specification of ESD.
| Parameter | Details |
|---|---|
| Product Name | ESD Products |
| Product Type | ESD Mat, Wrist Strap, Gloves, Bags, Shoes |
| Material | Rubber, PVC, Fabric, Conductive Fibers |
| Color | Blue, Green, Black |
| Surface Resistance | 10⁶ – 10⁹ Ω (Ohms) |
| Thickness | 1.5 mm – 3 mm (for mats) |
| Layer Type | Single Layer / Double Layer |
| Packaging Type | Roll / Box / Set |
| Size | Standard & Custom Sizes Available |
| Temperature Resistance | Suitable for Industrial Use |
| Usage/Application | Electronics & SMT Industries |
Advantages of ESD Protection Products
Some of the advantages are the following:
Guard Sensitive Components
Guard against static discharge to delicate parts.
Reduces Product Failures
Reduce product failures caused by component-related problems, particularly static related defects.
Improves Product Reliability
Increase overall product reliability by minimizing sudden and latent damage.
Supports Safer Handling
Provide a safe and controlled environment for individuals handling static sensitive electronics.
Reduces Material Waste
Help minimize discarded parts and reprocessing loss.
If you are looking for the best ESD then go look for IMTronics.
Case Study
A leading electronics manufacturer significantly cut their rates of electrostatic related components by implementing ESD control in PCB assembly to ensure safety measures throughout areas, improving production reliability by 30%, through improved grounding,ESD workstations, and better employee training programs.

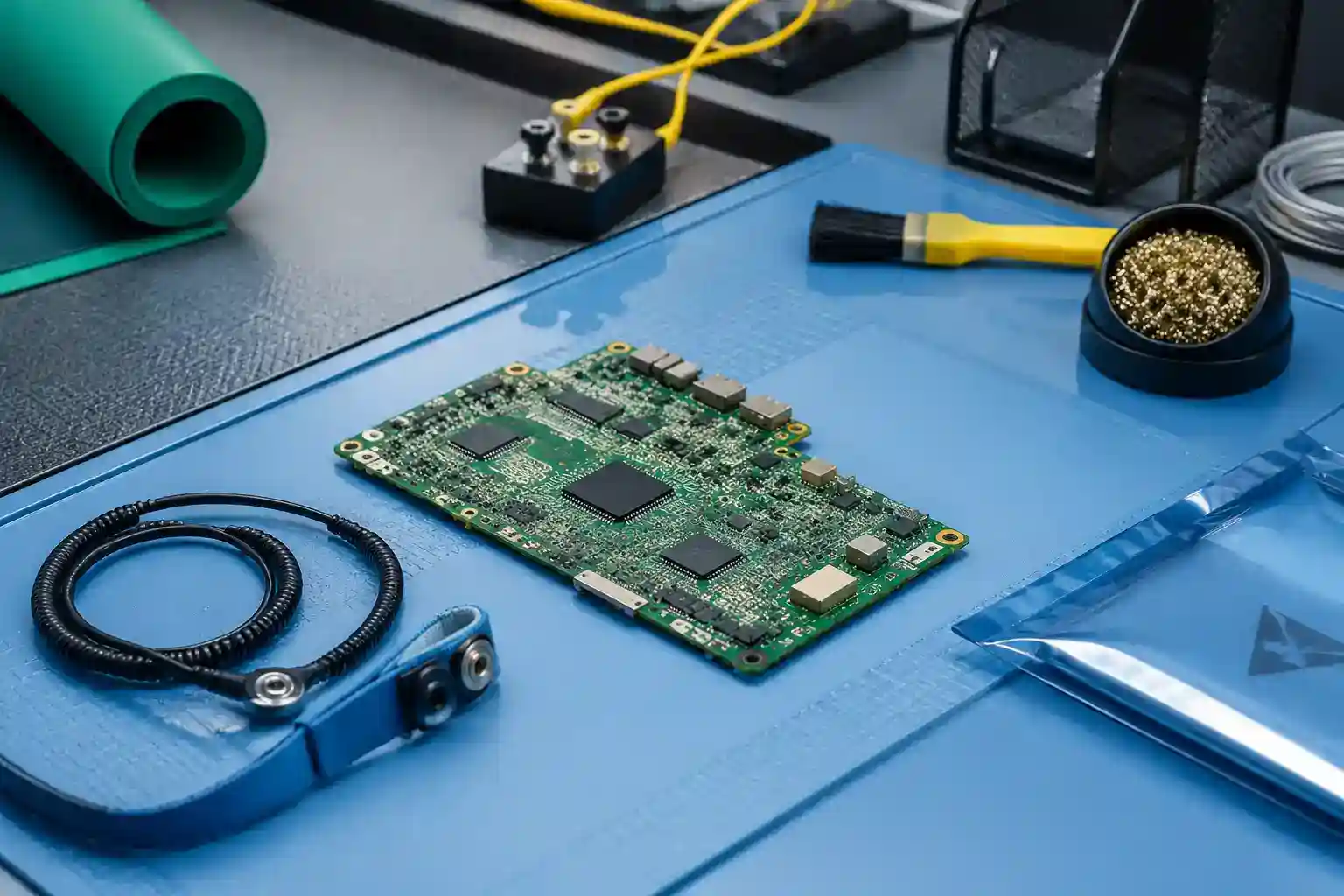

ESD Workstation
Proper ESD workstation setup involves an isolated work area that provides the correct setup for handling sensitive electronic parts safely. Some aspects of this are:
| ESD Protection Element | Purpose |
|---|---|
| ESD Work Mat | Provides a controlled surface for component handling |
| Wrist Strap | Helps safely dissipate static charge from the operator |
| Grounding System | Provides a controlled path for charge dissipation |
| ESD Storage Boxes | Protect sensitive components during storage |
| ESD Safe Tools | Reduce the risk of unwanted static discharge |
| ESD Protective Clothing | Helps control electrostatic charge from garments |
| ESD Footwear | Supports personnel grounding in suitable environments |
A regularly checked up workstation should ensure that the connections of grounding and protection products are working properly and for that you need to contact trustworthy ESD products wholesalers and traders in India.
Why Choose IMTronics for ESD?
Here are some of the reasons:
- They focus on operational efficiency.
- They have a strong import and supply network.
- They support electronics industry requirements.
- They serve a wide range of industrial consumables.
Conclusion
Although it cannot be seen, ESD discharges can take a major toll on our electronics. The slightest, uncontained discharge could either immediately cause some damage or have lasting damaging effects throughout our sensitive devices. Through the best use of ESD protection, proper grounding, work benches and materials in relation to this danger, you'll surely improve your overall workplace safety when dealing with a plethora of electronic components.
|
Looking for ESD near me then go and visit IMTronics now. Contact Us Today! |
Frequently Asked Questions
Here are some of the ways to choose ESD protection products:
- Application
- Work Environment
- Component Sensitivity
- Material Compatibility
- Maintenance Requirements
The ESD mat price affects due to material construction, dimensions, surface characteristics, grounding accessories, durability, and intended application.
ESD safe materials are specially designed to control static charge. They can be used for work surfaces, packaging, storage containers, tools, and protective accessories.
Employees need to understand proper grounding, handling, storage, and workstation procedures because incorrect handling can still expose components to electrostatic discharge.
You can find quality ESD products from IMTronics as they are reliable sourcing partners for ESD solutions. From here, you can easily buy ESD to ensure electronics manufacturing is safe and efficient for B2B customers.
